1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

Product Categories
Yitao Air Spring Group
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

Brand Name : YITAO

Model Number : 1V 9648

Certification : IATF16949

Place of Origin : China

MOQ : 50 pieces

Price : Negotiable in person

Payment Terms : T/T

Supply Ability : 5000pieces/Month

Delivery Time : 30

Packaging Details : Carton

OE Number : W01-358-9648,1T15MT-8,1R12-538,566243000,1R12-539 ,566241000,910-17.5P456,2027911C1,2027911C2,8456,6363

Condition : New

Type : Truck Air Spring

gross weight : 7.968 kg

net weight : 7.439 kg

packing size : 28*28*46.5 cm

Outer diameter : Φ255

Maximum height : 545mm

Minimum height : 160mm

Piston material : Plastic

Sealing configuration : Crimp Cover Plate + Vulcanized Sealing Plate

Contact Now

1V 9648 Truck Air Spring
Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9648 W013589648 / W01-3589648 / W01 358 9648
Firestone 1T15MT-8 1T15MT8 / 1T15MT-8 / 1T15 MT 8
Goodyear 1R12-538 1R12538 / 1R12 538 / :1R12538
Goodyear 566243000 :566243000
Goodyear 1R12-539 1R12539 / 1R12 539 / :1R12539
Goodyear 566241000 :566241000
Contitech 910-17.5P456 91017.5P456 / 910 17.5 P456 / 910-175P456
Navistar 2027911C1 :2027911C1
Navistar 2027911C2 :2027911C2
Triangle 8456 :8456
Triangle 6363 :6363

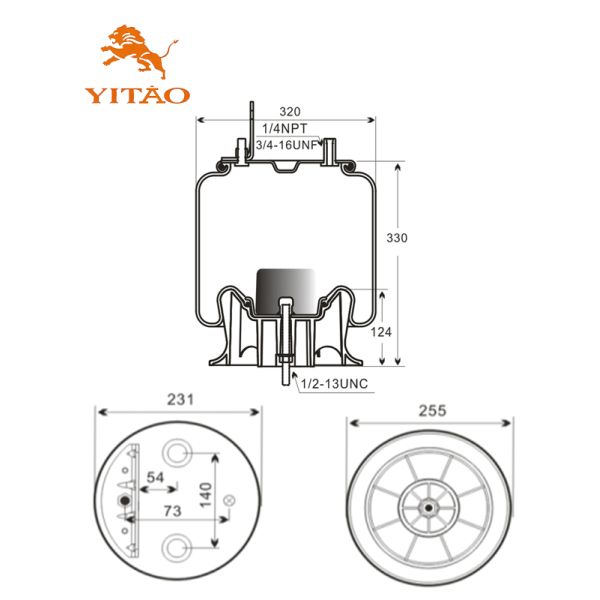

Technical Specifications
Specifications Parameters
Extended Height /
Compressed Height /
Top Plate Width 231mm
Piston Width 255mm
Weight 7.968 kg
Package Dimensions 28*28*46.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9648 W01-358-9622,1T15KW-(-1),1R11-221,566223021,99-9S537,39622K,K303-19 ,K303-22,FS9622
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

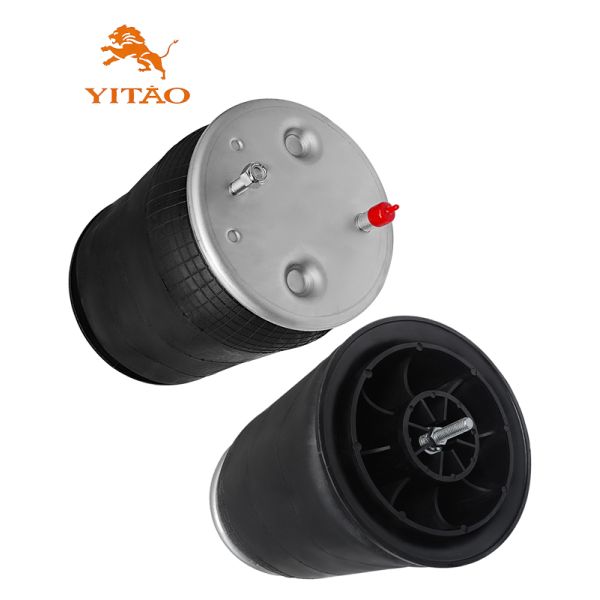

Product Images

1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C11V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C11V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

Factory Showcase
1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

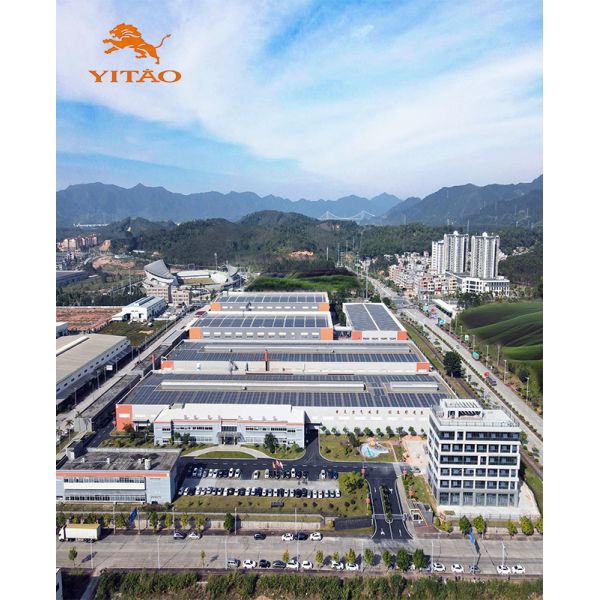

Factory Overlook
1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

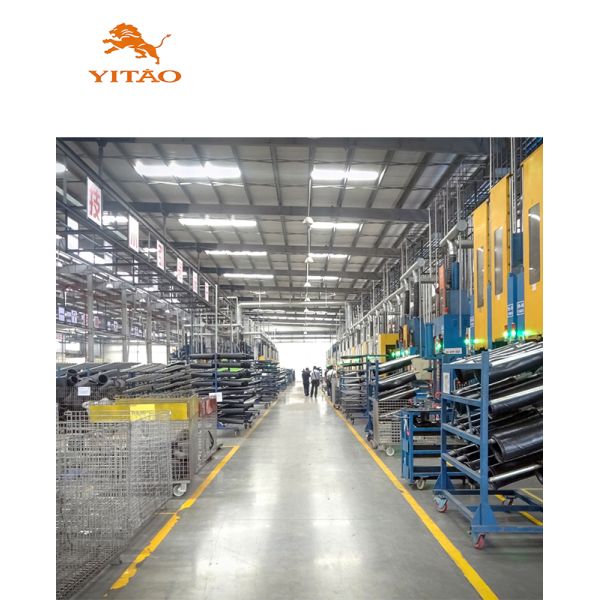

Quality Control Inspection
1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

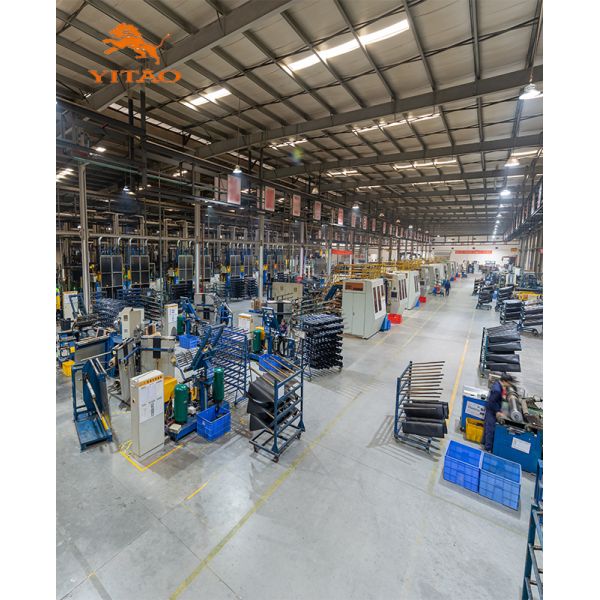

Manufacturing Equipment
1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1
R&D Center
1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

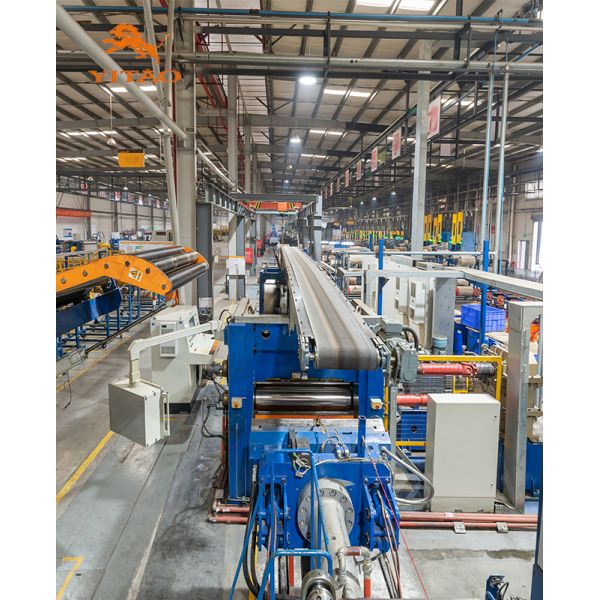

Assembly and Forming
1V 9648 Truck Air Spring, Suitable for Firestone W01-358-9648/Goodyear 1R12-538/Navistar 2027911C1

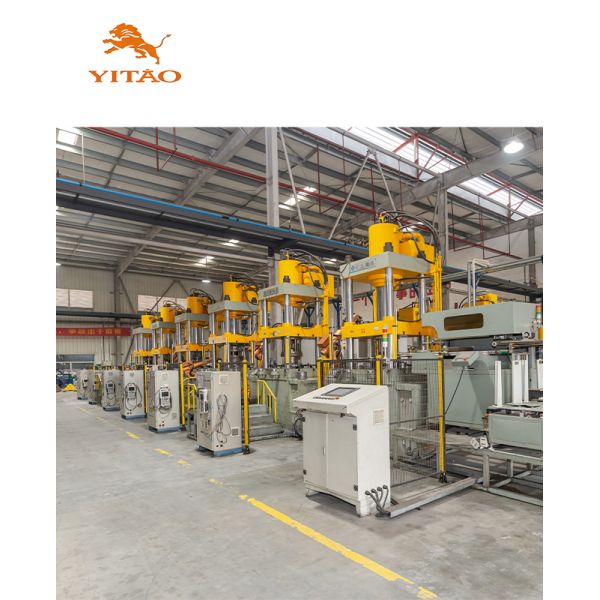

Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
